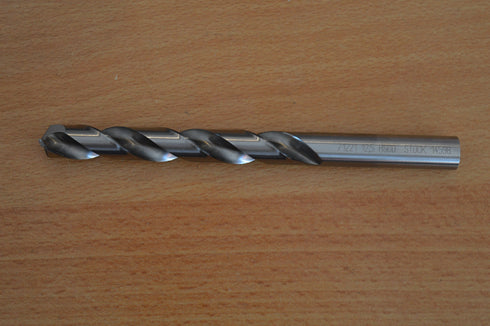

Cobalt drill HSSCo DIN338 5xD (D9.1 - D14) DIN338, 71221
SKU: ST-71221-091
VENDOR: STOCK
Prices without VAT 24%
Cobalt HSSCo drills, 5xD length, with cylindrical shank. Designed for a wide range of applications with reduced feed force and low torque requirements.
Features:
- Web thinning ≥ Ø 1.000
- Facet point grind
- Requires low feed force
- Low torque requirement
- Suitable for universal applications in:
- Alloyed and unalloyed steels up to 800 N/mm²
- Cold/hot work steels
- Antifriction bearing steels
- Non-ferrous metals
- Cast materials
- Stainless steels
- Plastics
Dimensional explanation: d1 x l2 x l1 mm
For detailed information and cutting conditions, download the PDF file here.
Name | Price | Quantity | Action |
---|---|---|---|
Φ9.1 x 68 x 125mm | €10,19 | ||
Φ9.2 x 68 x 125mm | €10,19 | ||
Φ9.3 x 68 x 125mm | €9,98 | ||
Φ9.4 x 68 x 125mm | €10,19 | ||
Φ9.5 x 68 x 125mm | €8,82 | ||
Φ9.6 x 74 x 133mm | €12,81 | ||
Φ9.7 x 74 x 133mm | €12,81 | ||
Φ9.8 x 74 x 133mm | €11,24 | ||
Φ9.9 x 74 x 133mm | €12,81 | ||
Φ10 x 73 x 133mm | €9,98 | ||
Φ10.1 x 73 x 133mm | €12,92 | ||
Φ10.2 x 73 x 133mm | €13,02 | ||
Φ10.3 x 73 x 133mm | €12,92 | ||
Φ10.4 x 73 x 133mm | €12,92 | ||
Φ10.5 x 73 x 133mm | €13,02 | ||
Φ11 x 79 x 142mm | €15,23 | ||
Φ11.5 x 78 x 142mm | €17,33 | ||
Φ12 x 85 x 151mm | €18,27 | ||
Φ12.5 x 84 x 151mm | €22,05 | ||
Φ13 x 83 x 151mm | €26,25 | ||
Φ13.5 x 90 x 160mm | €27,09 | ||
Φ14 x 108 x 160mm | €31,29 |
