Cobalt drills HSSCo 20xD DIN1869, 71193
SKU: ST-71193-03
VENDOR: STOCK
Prices without VAT 24%
€39,59
DESCRIPTION

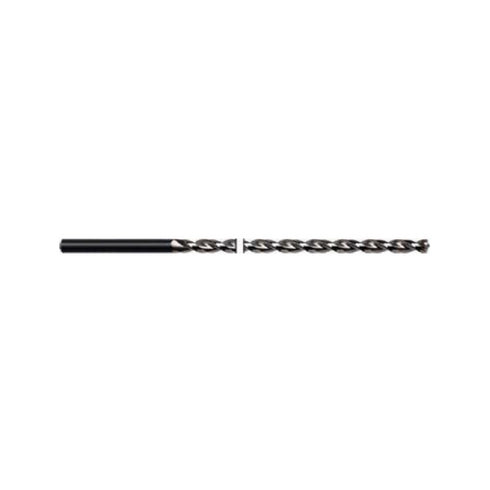

HSSCo drills, extra long (20xD), with cylindrical shank. Designed for extremely deep holes, offering increased wear resistance and wide flutes for improved chip evacuation.
Features:
- 20xD length
- Cylindrical shank
- Web thinning ≥ Ø 3.000
- Relieved cone design
- Wide flutes
- Increased wear resistance
- Ideal for extremely deep holes
- Suitable for:
- High tensile steels and cast steels
- Grey cast iron, malleable and spheroidal iron

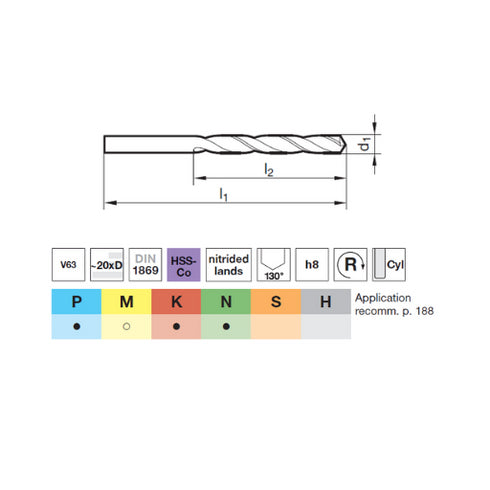

Dimensional explanation: d1 x l2 x l1 mm
For detailed information and cutting conditions, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Φ3 x 130 x 190mm | €39,59 | ||
| Φ3.5 x 145 x 210mm | €46,83 | ||
| Φ4 x 150 x 220mm | €42,84 | ||
| Φ4.5 x 160 x 235mm | €47,99 | ||
| Φ5 x 170 x 245mm | €45,68 | ||
| Φ5.5 x 180 x 260mm | €55,76 | ||
| Φ6 x 180 x 260mm | €55,76 | ||
| Φ6.5 x 190 x 275mm | €63,79 | ||
| Φ7 x 200 x 290mm | €70,25 | ||
| Φ7.5 x 200 x 290mm | €106,05 | ||
| Φ8 x 210 x 305mm | €81,59 | ||
| Φ8.5 x 210 x 305mm | €127,26 | ||
| Φ9 x 220 x 320mm | €126,21 | ||
| Φ9.5 x 220 x 320mm | €170,73 | ||
| Φ10 x 235 x 340mm | €132,93 |
