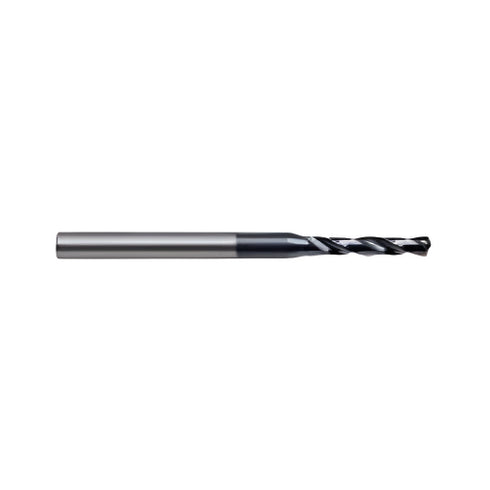

Carbide microdrill 5xD with coolant, 51997 (D10.1 - D20)
SKU: ST-51997-01
VENDOR: STOCK
Prices without VAT 24%
€148,05
DESCRIPTION
The carbide microdrill 5xD 51997 is specifically designed for precise micro-drilling with coolant supply, ensuring enhanced cutting performance and extended tool life. It features a special coating that reduces wear and improves tool durability. The straight main cutting edge and edge preparation ensure clean and accurate results in micro-machining applications.
Product Features:
• Type: Carbide microdrill 5xD with coolant.
• Coating: Yes.
• Shank: Cylindrical.
• Drilling Depth: Up to 5xD.
• Diameter: Φ1 - Φ3.
• Cutting Geometry:
- Web thinning ≥ Ø 1.400.
- Facet point grind.
- Straight main cutting edge.
- Edge preparation.
• Applications: - Ideal for high-precision applications and micro-machining.
- Suitable for steels, alloys, bronze, and brass.

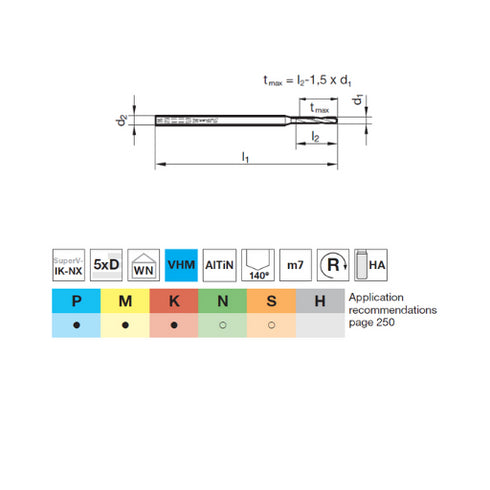

Dimensional explanation: d1 x l2 x l1 - d2 mm
For detailed information and cutting conditions, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Φ1 x 8 x 48 - 3mm | €148,05 | ||
| Φ1.02 x 8.5 x 48 - 3mm | €148,05 | ||
| Φ1.05 x 8.5 x 48 - 3mm | €148,05 | ||
| Φ1.1 x 9 x 48 - 3mm | €148,05 | ||
| Φ1.15 x 9.5 x 48 - 3mm | €148,05 | ||
| Φ1.18 x 9.5 x 48 - 3mm | €148,05 | ||
| Φ1.19 x 10 x 48 - 3mm | €148,05 | ||
| Φ1.2 x 10 x 48 - 3mm | €148,05 | ||
| Φ1.25 x 10 x 48 - 3mm | €148,05 | ||
| Φ1.28 x 10.5 x 48 - 3mm | €148,05 | ||
| Φ1.3 x 10.5 x 48 - 3mm | €148,05 | ||
| Φ1.35 x 11 x 48 - 3mm | €148,05 | ||
| Φ1.4 x 11 x 52 - 4mm | €153,20 | ||
| Φ1.45 x 12 x 52 - 4mm | €153,20 | ||
| Φ1.5 x 12 x 52 - 4mm | €153,20 | ||
| Φ1.55 x 12 x 52 - 4mm | €153,20 | ||
| Φ1.59 x 13 x 52 - 4mm | €153,20 | ||
| Φ1.6 x 13 x 52 - 4mm | €153,20 | ||
| Φ1.65 x 13 x 52 - 4mm | €159,50 | ||
| Φ1.7 x 14 x 56 - 4mm | €159,50 | ||
| Φ1.75 x 14 x 56 - 4mm | €159,50 | ||
| Φ1.8 x 14 x 56 - 4mm | €159,50 | ||
| Φ1.85 x 15 x 56 - 4mm | €159,50 | ||
| Φ1.9 x 15 x 56 - 4mm | €159,50 | ||
| Φ1.95 x 16 x 56 - 4mm | €159,50 | ||
| Φ1.98 x 16 x 56 - 4mm | €159,50 | ||
| Φ2 x 16 x 56 - 4mm | €165,80 | ||
| Φ2.05 x 16 x 56 - 4mm | €165,80 | ||
| Φ2.1 x 17 x 62 - 4mm | €165,80 | ||
| Φ2.15 x 17 x 62 - 4mm | €165,80 | ||
| Φ2.2 x 18 x 62 - 4mm | €165,80 | ||
| Φ2.25 x 18 x 62 - 4mm | €165,80 | ||
| Φ2.3 x 18 x 62 - 4mm | €169,58 | ||
| Φ2.35 x 19 x 62 - 4mm | €169,58 | ||
| Φ2.38 x 19 x 62 - 4mm | €169,58 | ||
| Φ2.4 x 19 x 62 - 4mm | €169,58 | ||
| Φ2.45 x 20 x 62 - 4mm | €169,58 | ||
| Φ2.5 x 20 x 62 - 4mm | €169,58 | ||
| Φ2.55 x 20 x 62 - 4mm | €169,58 | ||
| Φ2.6 x 21 x 66 - 4mm | €169,58 | ||
| Φ2.65 x 21 x 66 - 4mm | €169,58 | ||
| Φ2.7 x 22 x 66 - 4mm | €169,58 | ||
| Φ2.75 x 22 x 66 - 4mm | €176,30 | ||
| Φ2.78 x 22 x 66 - 4mm | €176,30 | ||
| Φ2.8 x 22 x 66 - 4mm | €176,30 | ||
| Φ2.85 x 23 x 66 - 4mm | €176,30 | ||
| Φ2.9 x 23 x 66 - 4mm | €176,30 | ||
| Φ2.95 x 24 x 66 - 4mm | €176,30 | ||
| Φ3 x 24 x 66 - 4mm | €176,30 |
