Carbide endmill 4F with corner radius, GM-4R
SKU: GM-4R-D3.0R0.2
VENDOR: ZCC CT
Prices without VAT 24%
The GM-4R carbide end mill is a coated 4-flute (4F) finishing tool with a corner radius, designed for increased durability and extended tool life. The cylindrical shank provides stability, while the corner radius geometry allows for smooth chip evacuation and reduces edge wear and breakage.
Features:
✔ Material: Carbide
✔ 4-flute (4F) design for superior finishing performance
✔ Coated for enhanced wear resistance
✔ Corner radius for increased cutting edge strength
✔ Cylindrical shank for maximum precision and stability
✔ Centre cutting geometry for clean and accurate cuts
Material Categories:
- Steel & Stainless Steel: Durable for heavy machining applications
- Alloys & Non-Ferrous Metals: Ideal for high-quality finishing tasks

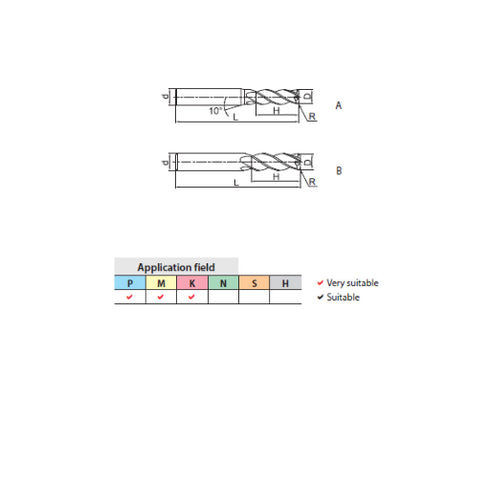

Dimensional explanation: D x H x L - d(h6) mm
For detailed information, cutting conditions, and specifications, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Φ3 r0.2 x 8 x 50 - 4mm | €15,54 | ||
| Φ4 r0.3 x 11 x 50 - 4mm | €15,54 | ||
| Φ4 r0.5 x 11 x 50 - 4mm | €15,54 | ||
| Φ5 r0.5 x 13 x 50 - 6mm | €15,54 | ||
| Φ5 r1 x 13 x 50 - 6mm | €15,54 | ||
| Φ6 r0.5 x 16 x 50 - 6mm | €15,54 | ||
| Φ6 r1 x 16 x 50 - 6mm | €15,54 | ||
| Φ8 r0.5 x 20 x 60 - 8mm | €26,67 | ||
| Φ8 r1 x 20 x 60 - 8mm | €26,67 | ||
| Φ10 r0.5 x 25 x 75 - 10mm | €37,70 | ||
| Φ10 r1 x 25 x 75 - 10mm | €37,70 | ||
| Φ10 r2 x 25 x 75 - 10mm | €37,70 | ||
| Φ10 r3 x 25 x 75 - 10mm | €37,70 | ||
| Φ12 r0.5 x 30 x 75 - 12mm | €51,66 | ||
| Φ12 r1 x 30 x 75 - 12mm | €51,66 | ||
| Φ12 r3 x 30 x 75 - 12mm | €51,66 | ||
| Φ12 r2 x 30 x 75 - 12mm | €51,66 |
