CLEARANCE SALE
RECOMMENDED ✓

Carbide endmill 4F with corner radius, 64525

SKU: ST-54526-06r0.5

VENDOR: STOCK

Prices without VAT 24%

€41,94

DESCRIPTION

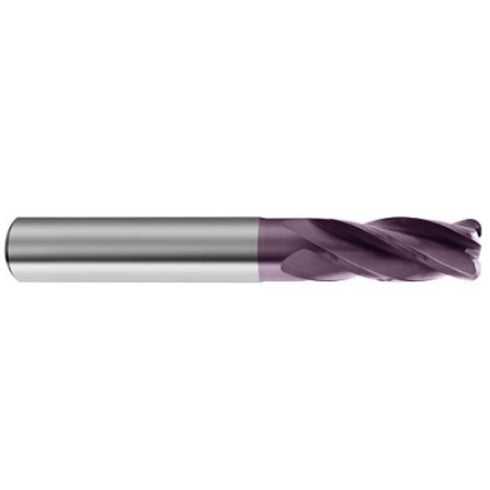

The 54526 carbide end mill features a 4-flute design with a corner radius and a coated finish for increased durability and tool life. Its cylindrical shank with neck clearance provides enhanced accessibility and stability during machining. With center cutting capability, it offers versatility and is highly suitable for steel, stainless steel, cast iron, and super alloys.

Features:
✔ Material: Carbide
✔ Corner radius for improved tool strength and smooth machining
✔ Coated for extended tool life
✔ Cylindrical shank with neck clearance for better reach
✔ Center cutting for versatile use
✔ Suitable for steel, stainless steel, cast iron, and super alloys

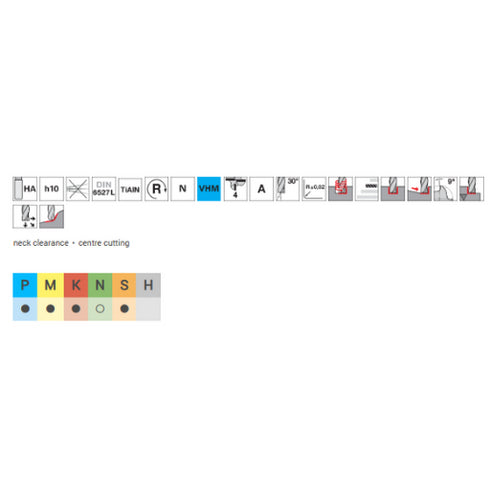

Material Categories:

  • Steel: Suitable for precise machining and material removal
  • Stainless Steel: Ideal for machining tough materials
  • Cast Iron: High performance and reliability in machining
  • Super Alloys: Optimized for high-strength material processing

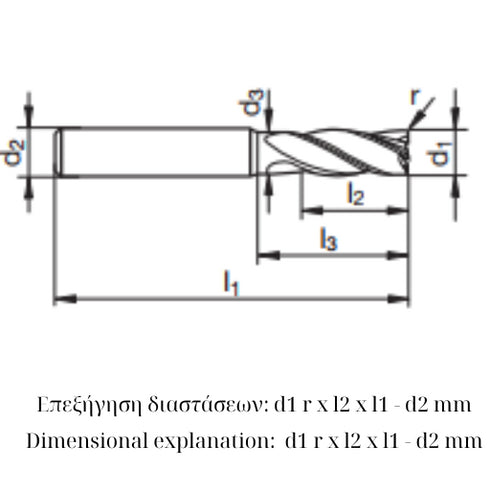

Dimensional explanation: dr x l2 x l- dmm

For detailed information, cutting conditions, and specifications, download the PDF file here.

Name Price Quantity Action
Φ6 r0.5 x 13 x 57 - 6mm €41,94
Φ6 r1 x 13 x 57 - 6mm €41,94
Φ8 r0.5 x 19 x 63 - 8mm €58,19
Φ8 r1 x 19 x 63 - 8mm €58,19
Φ8 r1.5 x 19 x 63 - 8mm €58,19
Φ8 r2 x 19 x 63 - 8mm €58,19
Φ10 r0.5 x 22 x 72 - 10mm €86,26
Φ10 r0.8 x 22 x 72 - 10mm €86,26
Φ10 r1 x 22 x 72 - 10mm €86,26
Φ10 r1.5 x 22 x 72 - 10mm €86,26
Φ10 r2 x 22 x 72 - 10mm €86,26
Φ12 r0.5 x 26 x 83 - 12mm €110,26
Φ12 r0.8 x 26 x 83 - 12mm €110,26
Φ12 r1 x 26 x 83 - 12mm €110,26
Φ12 r1.5 x 26 x 83 - 12mm €110,26
Φ12 r2 x 26 x 83 - 12mm €110,26
Φ16 r1 x 32 x 92 - 16mm €183,80
Φ16 r2 x 32 x 92 - 16mm €183,80
Φ20 r1 x 38 x 104 - 20mm €273,82
Φ20 r2 x 38 x 104 - 20mm €273,82
