Carbide ball endmill coated 4F extra long, GM-4BL
SKU: GM-4BL-R1.5
VENDOR: ZCC CT
Prices without VAT 24%

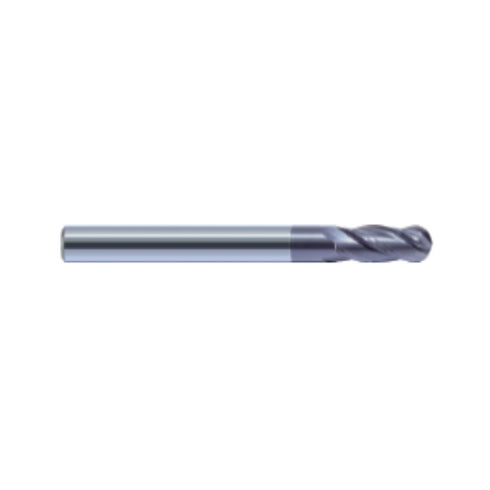

The GM-4BL carbide end mill is a long 4-flute (4F) tool with a ball nose and coating, featuring a cylindrical shank. Its geometry allows for deeper cuts, and with its centre cutting capability, it is ideal for machining steel, stainless steel, and cast iron. The coating increases the tool’s life and overall strength, making it suitable for demanding cutting operations.
Features:
✔ Material: Carbide
✔ 4-flute (4F) design for smooth cutting
✔ Ball Nose for precision in complex surface machining
✔ Long design for increased accuracy and deeper cuts
✔ Coated for enhanced wear resistance and tool life
✔ Very suitable for steel, stainless steel, and cast iron
Material Categories:
- Steel: Ideal for cutting and finishing
- Stainless Steel: High performance and durability
- Cast Iron: Reliable and smooth machining

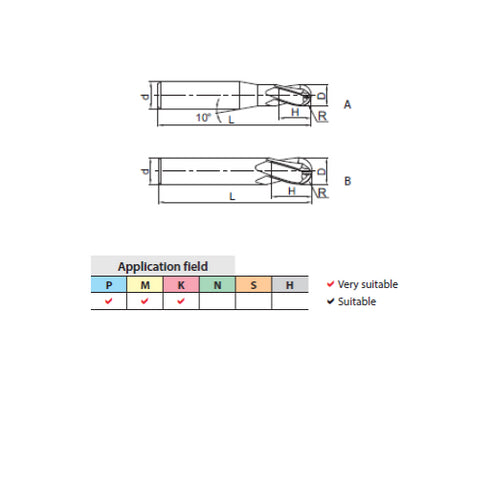

Dimensional explanation: D x H x L - d(h6) mm
For detailed information, cutting conditions, and specifications, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Φ3 x 6 x 75 - 6mm | €20,06 | ||
| Φ4 x 8 x 75 - 6mm | €20,06 | ||
| Φ5 x 10 x 75 - 6mm | €20,06 | ||
| Φ6 x 12 x 75 - 6mm | €20,06 | ||
| Φ8 x 16 x 100 - 8mm | €39,06 | ||
| Φ10 x 20 x 100 - 10mm | €47,15 | ||
| Φ12 x 24 x 100 - 12mm | €65,52 | ||
| Φ14 x 28 x 100 - 14mm | €95,97 | ||
| Φ16 x 32 x 150 - 16mm | €163,49 | ||
| Φ20 x 40 x 150 - 20mm | €253,79 |
