Carbide endmill ball coated 4F, GM-4B
SKU: GM-4B-R1.5
VENDOR: ZCC CT
Prices without VAT 24%

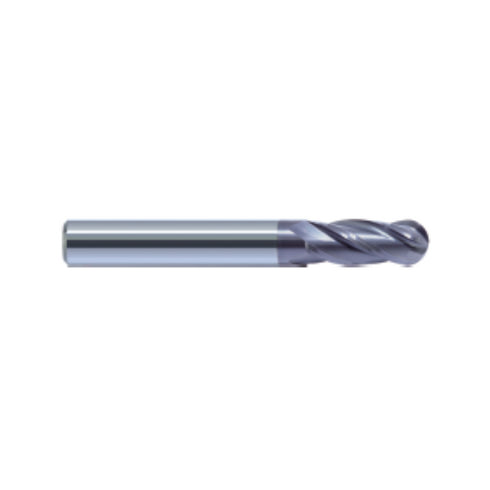

The GM-4B carbide end mill is a 4-flute (4F) tool with a ball nose and coating, featuring a cylindrical shank. It is highly suitable for machining steel, stainless steel, and cast iron, offering excellent performance and durability. The coating enhances the tool’s life and resistance to demanding cutting conditions.
Features:
✔ Material: Carbide
✔ 4-flute (4F) design for smooth and precise cutting
✔ Ball Nose for precision in complex surface machining
✔ Coated for increased resistance and longer tool life
✔ Very suitable for steel, stainless steel, and cast iron
Material Categories:
- Steel: Ideal for cutting and finishing
- Stainless Steel: High performance and durability
- Cast Iron: Excellent machining and precise results

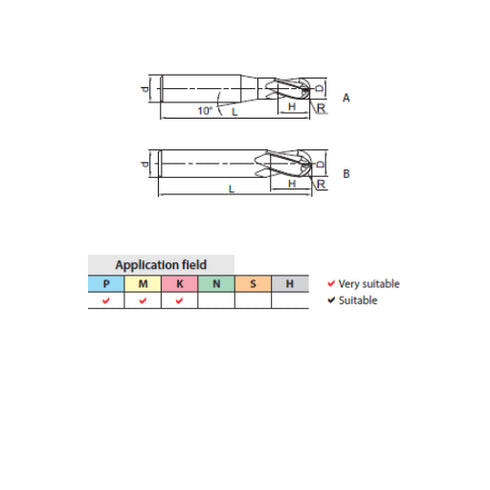

Dimensional explanation: D x H x L - d(h6) mm
For detailed information, cutting conditions, and specifications, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Φ3 x 6 x 50 - 6mm | €15,65 | ||
| Φ4 x 8 x 50 - 6mm | €15,65 | ||
| Φ5 x 10 x 50 - 6mm | €15,65 | ||
| Φ6 x 12 x 50 - 6mm | €15,65 | ||
| Φ8 x 16 x 60 - 8mm | €25,94 | ||
| Φ10 x 20 x 75 - 10mm | €33,60 | ||
| Φ12 x 24 x 75 - 12mm | €45,89 | ||
| Φ14 x 28 x 75 - 14mm | €66,68 | ||
| Φ16 x 32 x 100 - 16mm | €97,65 | ||
| Φ18 x 36 x 100 - 18mm | €150,36 | ||
| Φ20 x 40 x 100 - 20mm | €150,36 |
