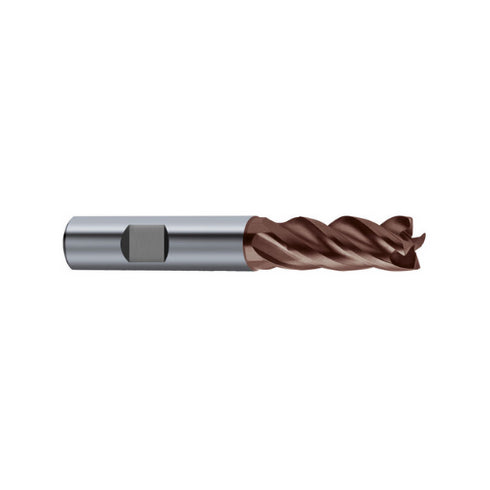

Carbide End Mill 4F with Weldon Shank, 54591
SKU: ST-54591-04
VENDOR: STOCK
Prices without VAT 24%
The carbide (4F) end mill with a Weldon shank is designed with an adapted face and flute geometry for maximum cutting rates and optimal chip evacuation. It allows ramping up to 45º and features an extremely hard coating for extended tool life. This tool ensures high process reliability while simultaneously reducing machining times.
Features:
✔ Material: Carbide
✔ Four-flute (4F) design for high cutting performance
✔ Weldon shank for enhanced stability
✔ Adapted face and flute geometry for optimal chip evacuation
✔ Ramping up to 45º is possible
✔ Extremely hard coating for long tool life
✔ High process reliability with reduced machining times
✔ Micro-corner protection for enhanced durability and precision
✔ Neck clearance for better accessibility
✔ Center cutting for precise and efficient machining
✔ Suitable for materials up to 1400 N/mm²
Application Categories:
- Machining of steel and high-strength alloys
- Ideal for demanding cutting applications
- Optimized chip evacuation for smooth operation

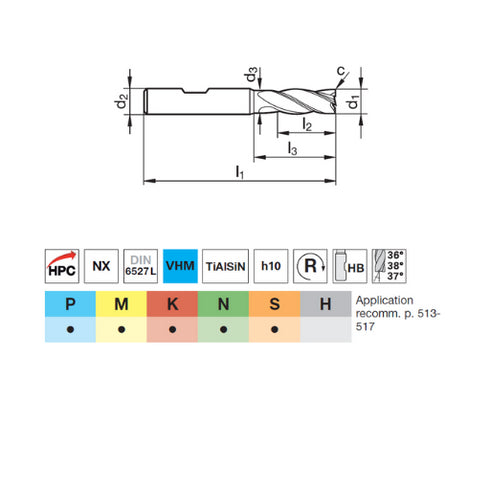

Dimensional explanation: d1 x l2 x l1 - d2 mm
For detailed information, cutting conditions, and specifications, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Φ4 x 11 x 57 - 6mm | €35,53 | ||
| Φ5 x 13 x 57 - 6mm | €36,12 | ||
| Φ5.7 x 13 x 57 - 6mm | €38,10 | ||
| Φ6 x 13 x 57 - 6mm | €37,11 | ||
| Φ7.7 x 19 x 63 - 8mm | €51,43 | ||
| Φ8 x 19 x 63 - 8mm | €47,39 | ||
| Φ9.7 x 22 x 72 - 10mm | €77,65 | ||
| Φ10 x 22 x 72 - 10mm | €69,69 | ||
| Φ11.7 x 26 x 83 - 12mm | €9,26 | ||
| Φ12 x 26 x 83 - 12mm | €84,89 | ||
| Φ13.7 x 26 x 83 - 14mm | €131,01 | ||
| Φ14 x 26 x 83 - 14mm | €131,01 | ||
| Φ15.6 x 32 x 92 - 16mm | €171,19 | ||
| Φ16 x 32 x 92 - 16mm | €163,27 | ||
| Φ19.5 x 38 x 104 - 20mm | €260,51 | ||
| Φ20 x 38 x104 - 20mm | €260,51 |
