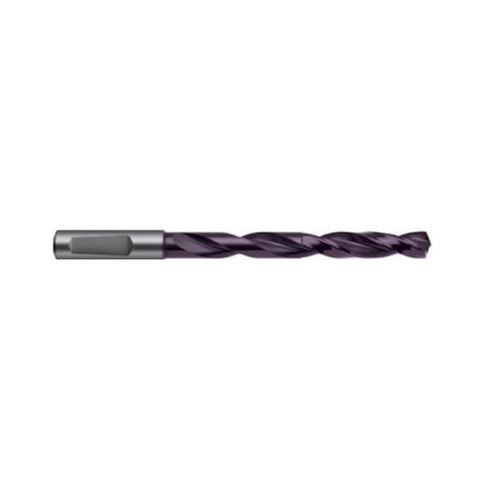

Carbide drills 7xD with coolant, 51889 (D3- D9)
SKU: ST-51889-03
VENDOR: STOCK
Prices without VAT 24%
€123,90
DESCRIPTION
The carbide drill 7xD 51889 is a high-performance drilling tool with coating and coolant supply, designed for deep drilling with exceptional accuracy. The double margin design ensures high stability and superior hole finish, while the optimized cutting geometry allows for efficient material removal.
Product Features:
• Type: Carbide drill 7xD with coolant.
• Coating: Yes.
• Shank: Cylindrical.
• Drilling Depth: Up to 7xD.
• Diameter: Φ3 - Φ9.
• Cutting Geometry:
- Web thinning ≥ Ø 3.000.
- Facet point grind.
- Straight main cutting edge.
- Optimized cutting geometry.
- Double margin.
• Applications: - Ideal for high-precision drilling in various materials.
- Excellent for structural and case-hardened steels.
- Suitable for machining cast materials, bronze, brass, and high-Si aluminum alloys.

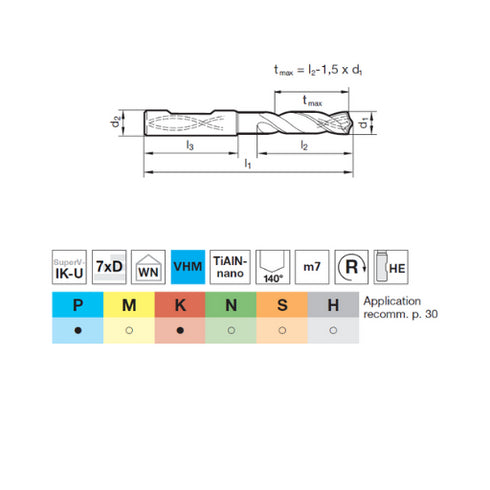

Dimensional explanation: d1 x l2 x l1 - d2 mm
For detailed information and cutting conditions, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Φ3 x 30 x 70 - 6mm | €123,90 | ||
| Φ3.1 x 30 x 70 - 6mm | €123,90 | ||
| Φ3.17 x 30 x 70 - 6mm | €123,90 | ||
| Φ3.2 x 30 x 70 - 6mm | €123,90 | ||
| Φ3.25 x 30 x 70 - 6mm | €123,90 | ||
| Φ3.3 x 30 x 70 - 6mm | €123,90 | ||
| Φ3.4 x 35.5 x 75 - 6mm | €123,90 | ||
| Φ3.5 x 35.5 x 75 - 6mm | €123,90 | ||
| Φ3.57 x 35.5 x 75 - 6mm | €123,90 | ||
| Φ3.6 x 35.5 x 75 - 6mm | €123,90 | ||
| Φ3.7 x 35.5 x 75 - 6mm | €123,90 | ||
| Φ3.8 x 37.5 x 75 - 6mm | €123,90 | ||
| Φ3.9 x 37.5 x 75 - 6mm | €123,90 | ||
| Φ3.97 x 37.5 x 75 - 6mm | €123,90 | ||
| Φ4 x 37 x 75 - 6mm | €123,90 | ||
| Φ4.04 x 37.5 x 75 - 6mm | €123,90 | ||
| Φ4.1 x 37.5 x 75 - 6mm | €123,90 | ||
| Φ4.2 x 37.5 x 75 - 6mm | €123,90 | ||
| Φ4.3 x 45 x 85 - 6mm | €123,90 | ||
| Φ4.37 x 45 x 85 - 6mm | €123,90 | ||
| Φ4.4 x 45 x 85 - 6mm | €123,90 | ||
| Φ4.5 x 45 x 85 - 6mm | €123,90 | ||
| Φ4.6 x 45 x 85 - 6mm | €123,90 | ||
| Φ4.65 x 45 x 85 - 6mm | €123,90 | ||
| Φ4.7 x 45 x 85 - 6mm | €123,90 | ||
| Φ4.76 x 50 x 90 - 6mm | €123,90 | ||
| Φ4.8 x 50 x 90 - 6mm | €123,90 | ||
| Φ4.9 x 50 x 90 - 6mm | €123,90 | ||
| Φ5 x 50 x 90 - 6mm | €123,90 | ||
| Φ5.1 x 50 x 90 - 6mm | €123,90 | ||
| Φ5.11 x 50 x 90 - 6mm | €123,90 | ||
| Φ5.16 x 50 x 90 - 6mm | €123,90 | ||
| Φ5.2 x 50 x 90 - 6mm | €123,90 | ||
| Φ5.25 x 50 x 90 - 6mm | €123,90 | ||
| Φ5.3 x 50 x 90 - 6mm | €123,90 | ||
| Φ5.4 x 57 x 97 - 6mm | €123,90 | ||
| Φ5.41 x 57 x 97 - 6mm | €123,90 | ||
| Φ5.5 x 57 x 97 - 6mm | €123,90 | ||
| Φ5.56 x 57 x 97 - 6mm | €123,90 | ||
| Φ5.6 x 57 x 97 - 6mm | €123,90 | ||
| Φ5.7 x 57 x 97 - 6mm | €123,90 | ||
| Φ5.8 x 57 x 97 - 6mm | €123,90 | ||
| Φ5.9 x 57 x 97 - 6mm | €123,90 | ||
| Φ5.95 x 57 x 97 - 6mm | €123,90 | ||
| Φ6 x 57 x 97 - 6mm | €123,90 | ||
| Φ6.1 x 66 x 106 - 8mm | €143,75 | ||
| Φ6.2 x 66 x 106 - 8mm | €143,75 | ||
| Φ6.3 x 66 x 106 - 8mm | €143,75 | ||
| Φ6.35 x 66 x 106 - 8mm | €143,75 | ||
| Φ6.4 x 66 x 106 - 8mm | €143,75 | ||
| Φ6.5 x 66 x 106 - 8mm | €143,75 | ||
| Φ6.53 x 66 x 106 - 8mm | €143,75 | ||
| Φ6.6 x 66 x 106 - 8mm | €143,75 | ||
| Φ6.7 x 66 x 106 - 8mm | €143,75 | ||
| Φ6.75 x 66 x 106 - 8mm | €143,75 | ||
| Φ6.8 x 66 x 106 - 8mm | €143,75 | ||
| Φ6.9 x 76 x 116 - 8mm | €143,75 | ||
| Φ7 x 76 x 116 - 8mm | €143,75 | ||
| Φ7.1 x 76 x 116 - 8mm | €143,75 | ||
| Φ7.14 x 76 x 116 - 8mm | €143,75 | ||
| Φ7.2 x 76 x 116 - 8mm | €143,75 | ||
| Φ7.3 x 76 x 116 - 8mm | €143,75 | ||
| Φ7.4 x 76 x 116 - 8mm | €143,75 | ||
| Φ7.5 x 76 x 116 - 8mm | €143,75 | ||
| Φ7.54 x 76 x 116 - 8mm | €143,75 | ||
| Φ7.6 x 76 x 116 - 8mm | €143,75 | ||
| Φ7.7 x 76 x 116 - 8mm | €143,75 | ||
| Φ7.8 x 76 x 116 - 8mm | €143,75 | ||
| Φ7.9 x 76 x 116 - 8mm | €143,75 | ||
| Φ7.94 x 76 x 116 - 8mm | €143,75 | ||
| Φ8 x 76 x 116 - 8mm | €143,75 | ||
| Φ8.1 x 87 x 131 - 10mm | €173,78 | ||
| Φ8.2 x 87 x 131 - 10mm | €173,78 | ||
| Φ8.3 x 87 x 131 - 10mm | €173,78 | ||
| Φ8.33 x 87 x 131 - 10mm | €173,78 | ||
| Φ8.4 x 87 x 131 - 10mm | €173,78 | ||
| Φ8.5 x 87 x 131 - 10mm | €173,78 | ||
| Φ8.6 x 87 x 131 - 10mm | €173,78 | ||
| Φ8.7 x 87 x 131 - 10mm | €173,78 | ||
| Φ8.73 x 87 x 131 - 10mm | €173,78 | ||
| Φ8.8 x 87 x 131 - 10mm | €173,78 | ||
| Φ8.9 x 87 x 131 - 10mm | €173,78 | ||
| Φ9 x 87 x 131 - 10mm | €173,78 |
