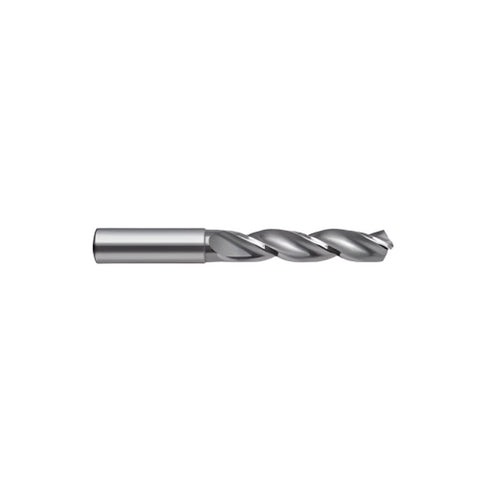

Carbide Drill 5xD Three-Flute, 71862 (Φ3 - Φ20)
SKU: ST-71862-03
VENDOR: STOCK
Prices without VAT 24%
€40,80
DESCRIPTION
Uncoated carbide drills designed for 5xD drilling. Features a three-flute design, no coolant supply, and a cylindrical shank.
Features:
- Web thinning: ≥ Ø 3.000
- Spiro-point: Optimized tip geometry for precise centering.
- Wide flutes: Spacious grooves for better chip evacuation.
- Optimal centering: High centering accuracy.
- Suitable for interrupted cutting: Ideal for interrupted cuts.

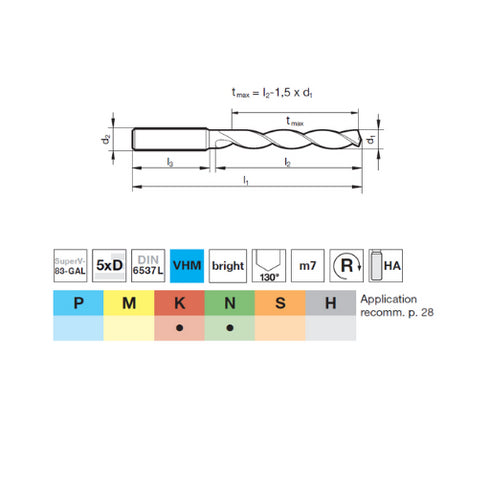

Dimensions:
Dimension explanation: d1 x l2 x l1 - d2 mm
Available Diameters:
Φ3 - Φ20
For technical specifications and cutting conditions, download the pdf here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Φ3 x 28 x 66 - 6mm | €40,80 | ||
| Φ3.1 x 28 x 66 - 6mm | €40,80 | ||
| Φ3.2 x 28 x 66 - 6mm | €40,80 | ||
| Φ3.3 x 28 x 66 - 6mm | €40,80 | ||
| Φ3.5 x 28 x 66 - 6mm | €40,80 | ||
| Φ3.7 x 28 x 66 - 6mm | €40,80 | ||
| Φ3.8 x 36 x 74 - 6mm | €40,80 | ||
| Φ4 x 36 x 74 - 6mm | €40,80 | ||
| Φ4.1 x 36 x 74 - 6mm | €40,80 | ||
| Φ4.2 x 36 x 74 - 6mm | €40,80 | ||
| Φ4.5 x 36 x 74 - 6mm | €40,80 | ||
| Φ4.8 x 44 x 82 - 6mm | €40,80 | ||
| Φ5 x 44 x 82 - 6mm | €40,80 | ||
| Φ5.1 x 44 x 82 - 6mm | €40,80 | ||
| Φ5.2 x 44 x 82 - 6mm | €40,80 | ||
| Φ5.3 x 44 x 82 - 6mm | €40,80 | ||
| Φ5.5 x 44 x 82 - 6mm | €40,80 | ||
| Φ5.8 x 44 x 82 - 6mm | €40,80 | ||
| Φ6 x 53 x 82 - 6mm | €40,80 | ||
| Φ6.1 x 53 x 91 - 8mm | €49,00 | ||
| Φ6.2 x 53 x 91 - 8mm | €49,00 | ||
| Φ6.4 x 53 x 91 - 8mm | €49,00 | ||
| Φ6.5 x 53 x 91 - 8mm | €49,00 | ||
| Φ6.7 x 53 x 91 - 8mm | €49,00 | ||
| Φ6.8 x 53 x 91 - 8mm | €49,00 | ||
| Φ6.9 x 53 x 91 - 8mm | €49,00 | ||
| Φ7 x 53 x 91 - 8mm | €49,00 | ||
| Φ7.1 x 53 x 91 - 8mm | €49,00 | ||
| Φ7.4 x 53 x 91 - 8mm | €49,00 | ||
| Φ7.5 x 53 x 91 - 8mm | €49,00 | ||
| Φ7.8 x 53 x 91 - 8mm | €49,00 | ||
| Φ8 x 53 x 91 - 8mm | €49,00 | ||
| Φ8.1 x 61 x 103 - 10mm | €55,50 | ||
| Φ8.2 x 61 x 103 - 10mm | €55,50 | ||
| Φ8.4 x 61 x 103 - 10mm | €55,50 | ||
| Φ8.5 x 61 x 103 - 10mm | €55,50 | ||
| Φ8.6 x 61 x 103 - 10mm | €55,50 | ||
| Φ8.7 x 61 x 103 - 10mm | €55,50 | ||
| Φ8.8 x 61 x 103 - 10mm | €55,50 | ||
| Φ9 x 61 x 103 - 10mm | €55,50 | ||
| Φ9.1 x 61 x 103 - 10mm | €55,50 | ||
| Φ9.5 x 61 x 103 - 10mm | €55,50 | ||
| Φ9.8 x 61 x 103 - 10mm | €55,50 | ||
| Φ10 x 61 x 103 - 10mm | €55,50 | ||
| Φ10.1 x 71 x 118 - 12mm | €82,70 | ||
| Φ10.2 x 71 x 118 - 12mm | €82,70 | ||
| Φ10.3 x 71 x 118 - 12mm | €82,70 | ||
| Φ10.5 x 71 x 118 - 12mm | €82,70 | ||
| Φ11 x 71 x 118 - 12mm | €82,70 | ||
| Φ11.2 x 71 x 118 - 12mm | €82,70 | ||
| Φ11.5 x 71 x 118 - 12mm | €82,70 | ||
| Φ11.8 x 71 x 118 - 12mm | €82,70 | ||
| Φ12 x 71 x 118 - 12mm | €82,70 | ||
| Φ12.1 x 77 x 124 - 14mm | €108,80 | ||
| Φ12.5 x 77 x 124 - 14mm | €108,80 | ||
| Φ13 x 77 x 124 - 14mm | €108,80 | ||
| Φ13.5 x 77 x 124 - 14mm | €108,80 | ||
| Φ14 x 77 x 124 - 14mm | €108,80 | ||
| Φ14.1 x 83 x 133 - 16mm | €133,90 | ||
| Φ14.5 x 83 x 133 - 16mm | €133,90 | ||
| Φ15 x 83 x 133 - 16mm | €133,90 | ||
| Φ15.5 x 83 x 133 - 16mm | €133,90 | ||
| Φ16 x 83 x 133 - 16mm | €133,90 | ||
| Φ16.5 x 93 x 143 - 18mm | €199,30 | ||
| Φ17 x 93 x 143 - 18mm | €199,30 | ||
| Φ17.5 x 93 x 143 - 18mm | €199,30 | ||
| Φ18 x 93 x 143 - 18mm | €199,30 | ||
| Φ18.5 x 101 x 153 - 20mm | €270,00 | ||
| Φ19 x 101 x 153 - 20mm | €270,00 | ||
| Φ19.5 x 101 x 153 - 20mm | €270,00 | ||
| Φ20 x 101 x 153 - 20mm | €270,00 |
