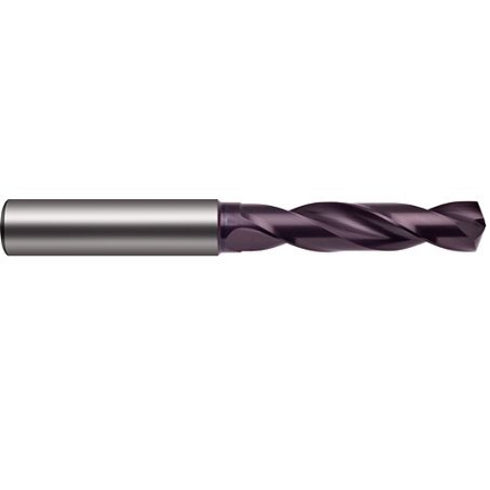

Carbide drills 3xD without coolant, 51873 (D10.1 - D20)
SKU: ST-51783-101
VENDOR: STOCK
Prices without VAT 24%
The carbide drill 3xD 51873 is a high-performance drilling tool designed for precision and durability. Its optimized cutting geometry ensures efficient chip removal and reduced wear. Ideal for structural and case-hardened steels, free-cutting and heat-treatable steels, as well as cast materials, bronze, and brass.

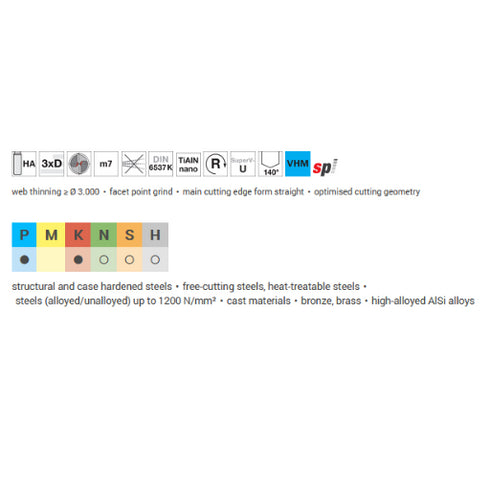

Product Features:
• Type: Coated carbide drill.
• Design: 3xD without coolant supply.
• Shank: Cylindrical.
• Available Diameters: Φ3 - Φ10.
• Web thinning ≥ Ø 3.000.
• Facet point grind.
• Straight main cutting edge.
• Optimized cutting geometry.
• Suitable for:
• Structural and case-hardened steels.
• Free-cutting and heat-treatable steels.
• Steels (alloyed/unalloyed) up to 1200 N/mm².
• Cast materials, bronze, brass.
• High-alloyed AlSi alloys.
(D10.1 - D20)

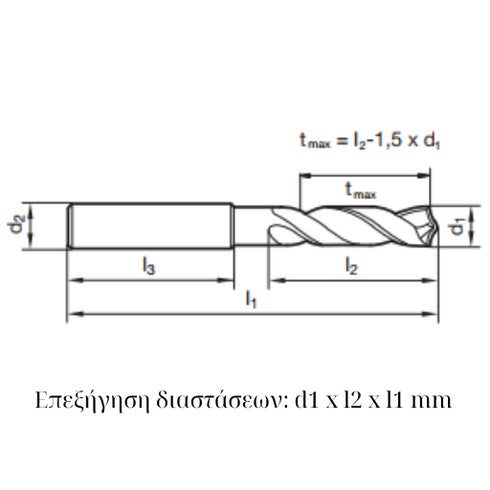

Dimensional explanation: d1 x l2 x l1 - d2 mm
For detailed information and cutting conditions, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Φ10.1 x 34.8 x 102 - 12mm | €56,18 | ||
| Φ10.2 x 34.6 x 102 - 12mm | €56,18 | ||
| Φ10.3 x 34.4 x 102 - 12mm | €56,18 | ||
| Φ10.32 x 34.4 x 102 - 12mm | €56,18 | ||
| Φ10.4 x 34.2 x 102 - 12mm | €56,18 | ||
| Φ10.5 x 34 x 102 - 12mm | €56,18 | ||
| Φ10.6 x 33.8 x 102 - 12mm | €56,18 | ||
| Φ10.7 x 33.6 x 102 - 12mm | €56,18 | ||
| Φ10.72 x 33.6 x 102 - 12mm | €56,18 | ||
| Φ10.8 x 33.4 x 102 - 12mm | €56,18 | ||
| Φ10.9 x 33.2 x 102 - 12mm | €56,18 | ||
| Φ11 x 33 x 102 - 12mm | €56,18 | ||
| Φ11.1 x 32.8 x 102 - 12mm | €56,18 | ||
| Φ11.11 x 32.8 x 102 - 12mm | €56,18 | ||
| Φ11.2 x 32.6 x 102 - 12mm | €56,18 | ||
| Φ11.3 x 32.4 x 102 - 12mm | €56,18 | ||
| Φ11.4 x 32.2 x 102 - 12mm | €56,18 | ||
| Φ11.5 x 32 x 102 - 12mm | €56,18 | ||
| Φ11.6 x 31.8 x 102 - 12mm | €56,18 | ||
| Φ11.7 x 31.6 x 102 - 12mm | €56,18 | ||
| Φ11.8 x 31.4 x 102 - 12mm | €56,18 | ||
| Φ11.9 x 31.2 x 102 - 12mm | €56,18 | ||
| Φ11.91 x 31.2 x 102 - 12mm | €56,18 | ||
| Φ12 x 31 x 102 - 12mm | €56,18 | ||
| Φ12.1 x 35.8 x 107 - 14mm | €74,51 | ||
| Φ12.2 x 35.6 x 107 - 14mm | €74,51 | ||
| Φ12.3 x 35.4 x 107 - 14mm | €74,51 | ||
| Φ12.4 x 35.2 x 107 - 14mm | €74,51 | ||
| Φ12.5 x 35 x 107 - 14mm | €74,51 | ||
| Φ12.6 x 34.8 x 107 - 14mm | €74,51 | ||
| Φ12.7 x 34.6 x 107 - 14mm | €74,51 | ||
| Φ12.8 x 34.4 x 107 - 14mm | €74,51 | ||
| Φ12.9 x 34.2 x 107 - 14mm | €74,51 | ||
| Φ13 x 34 x 107 - 14mm | €74,51 | ||
| Φ13.1 x 33.8 x 107 - 14mm | €74,51 | ||
| Φ13.2 x 33.6 x 107 - 14mm | €74,51 | ||
| Φ13.3 x 33.4 x 107 - 14mm | €74,51 | ||
| Φ13.4 x 33.2 x 107 - 14mm | €74,51 | ||
| Φ13.49 x 33 x 107 - 14mm | €74,51 | ||
| Φ13.5 x 33 x 107 - 14mm | €74,51 | ||
| Φ13.6 x 32.8 x 107 - 14mm | €74,51 | ||
| Φ13.7 x 32.6 x 107 - 14mm | €74,51 | ||
| Φ13.8 x 32.4 x 107 - 14mm | €74,51 | ||
| Φ13.89 x 32.2 x 107 - 14mm | €74,51 | ||
| Φ13.9 x 32.2 x 107 - 14mm | €74,51 | ||
| Φ14 x 32 x 107 - 14mm | €74,51 | ||
| Φ14.1 x 36.8 x 115 - 16mm | €96,25 | ||
| Φ14.2 x 36.6 x 115 - 16mm | €96,25 | ||
| Φ14.29 x 36.4 x 115 - 16mm | €96,25 | ||
| Φ14.3 x 36.4 x 115 - 16mm | €96,25 | ||
| Φ14.4 x 36.2 x 115 - 16mm | €96,25 | ||
| Φ14.5 x 36 x 115 - 16mm | €96,25 | ||
| Φ14.6 x 35.8 x 115 - 16mm | €96,25 | ||
| Φ14.68 x 35.6 x 115 - 16mm | €96,25 | ||
| Φ14.7 x 35.6 x 115 - 16mm | €96,25 | ||
| Φ14.8 x 35.4 x 115 - 16mm | €96,25 | ||
| Φ14.9 x 35.2 x 115 - 16mm | €96,25 | ||
| Φ15 x 35 x 115 - 16mm | €96,25 | ||
| Φ15.08 x 34.8 x 115 - 16mm | €96,25 | ||
| Φ15.1 x 34.8 x 115 - 16mm | €96,25 | ||
| Φ15.2 x 34.6 x 115 - 16mm | €96,25 | ||
| Φ15.3 x 34.4 x 115 - 16mm | €96,25 | ||
| Φ15.4 x 34.2 x 115 - 16mm | €96,25 | ||
| Φ15.48 x 34 x 115 - 16mm | €96,25 | ||
| Φ15.5 x 34 x 115 - 16mm | €96,25 | ||
| Φ15.6 x 33.8 x 115 - 16mm | €96,25 | ||
| Φ15.7 x 33.6 x 115 - 16mm | €96,25 | ||
| Φ15.8 x 33.4 x 115 - 16mm | €96,25 | ||
| Φ15.87 x 33.3 x 115 - 16mm | €96,25 | ||
| Φ15.9 x 33.2 x 115 - 16mm | €96,25 | ||
| Φ16 x 33 x 115 - 16mm | €96,25 | ||
| Φ16.27 x 40.5 x 123 - 18mm | €165,04 | ||
| Φ16.5 x 40 x 123 - 18mm | €165,04 | ||
| Φ16.67 x 39.7 x 123 - 18mm | €165,04 | ||
| Φ17 x 39 x 123 - 18mm | €165,04 | ||
| Φ17.07 x 38.9 x 123 - 18mm | €165,04 | ||
| Φ17.46 x 38.1 x 123 - 18mm | €165,04 | ||
| Φ17.5 x 38 x 123 - 18mm | €165,04 | ||
| Φ17.86 x 37.3 x 123 - 18mm | €165,04 | ||
| Φ18 x 37 x 123 - 18mm | €165,04 | ||
| Φ18.26 x 42.5 x 131 - 20mm | €181,11 | ||
| Φ18.3 x 42.4 x 131 - 20mm | €181,11 | ||
| Φ18.5 x 42 x 131 - 20mm | €181,11 | ||
| Φ19 x 41 x 131 - 20mm | €181,11 | ||
| Φ19.05 x 40.9 x 131 - 20mm | €181,11 | ||
| Φ19.25 x 40.5 x 131 - 20mm | €181,11 | ||
| Φ19.446 x 40.1 x 131 - 20mm | €181,11 | ||
| Φ19.5 x 40 x 131 - 20mm | €181,11 | ||
| Φ19.84 x 39.3 x 131 - 20mm | €181,11 | ||
| Φ20 x 39 x 131 - 20mm | €181,11 |
