Carbide endmill 3F no coating, 74523
SKU: ST-74523-02
VENDOR: STOCK
Prices without VAT 24%

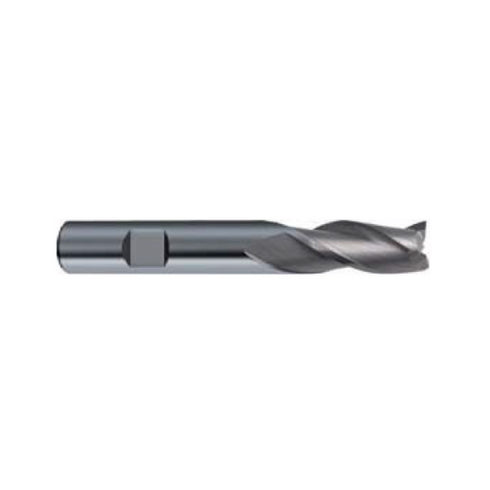

3-flute (3F) carbide end mill 74523 uncoated, featuring a weldon shank for enhanced stability and secure clamping. Designed for universal finishing and cutting applications, delivering precision and durability across various materials.
Features:
✔ Material: Carbide
✔ 3-flute (3F) design for improved stability and surface finish
✔ Uncoated for natural cutting without additional resistance
✔ Weldon shank for secure holding and anti-slip performance
✔ Centre cutting for maximum efficiency and versatility
✔ Suitable for universal machining applications
Material Categories:
- Steel & Alloys: Precise cutting with high performance
- Stainless Steel: Enhanced durability and stability
- Aluminum & Non-Ferrous Metals: Smooth and efficient machining

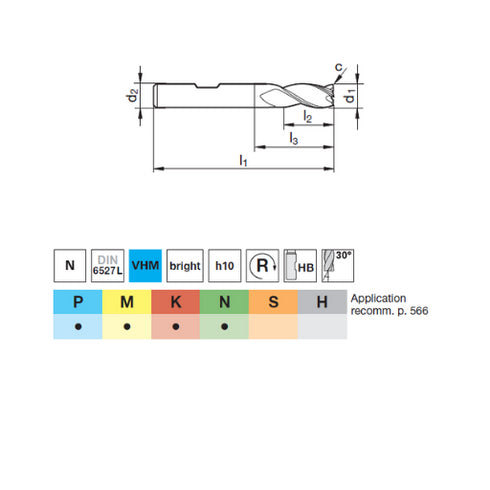

Dimensional explanation: d1 x l3 x l1 - d2 mm
For detailed information, cutting conditions, and specifications, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Φ2 x 10.4 x 57 - 6mm | €33,65 | ||
| Φ2.5 x 11.4 x 57 - 6mm | €33,58 | ||
| Φ3 x 11.4 x 57 - 6mm | €32,86 | ||
| Φ3.5 x 11.4 x 57 - 6mm | €33,58 | ||
| Φ4 x 13.9 x 57 - 6mm | €30,45 | ||
| Φ4.5 x 13.9 x 57 - 6mm | €34,14 | ||
| Φ5 x 16.9 x 57 - 6mm | €31,16 | ||
| Φ6 x 21 x 57 - 6mm | €31,16 | ||
| Φ8 x 27 x 63 - 8mm | €36,07 | ||
| Φ10 x 32 x 72 - 10mm | €55,48 | ||
| Φ12 x 38 x 83 - 12mm | €77,44 | ||
| Φ14 x 38 x 83 - 12mm | €104,70 | ||
| Φ16 x 44 x 92 - 16mm | €128,21 | ||
| Φ18 x 44 x 92 - 16mm | €197,18 | ||
| Φ20 x 54 x104 - 20mm | €225,32 |
