Carbide rotary burr ball
SKU: H0504.03.Z3
VENDOR: T-F
Prices without VAT 24%
€17,16
DESCRIPTION

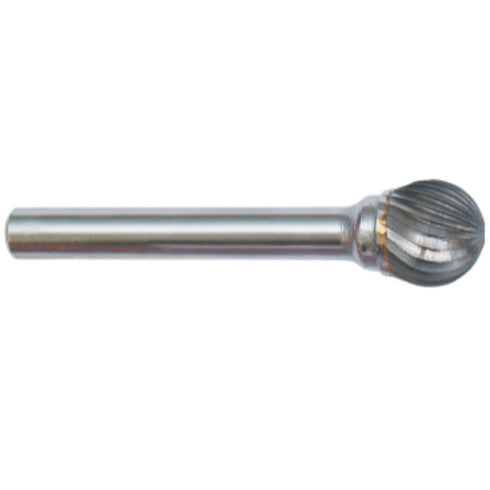

Rotary carbide files with a ball shape (Shape KUD). Ideal for processing hard and tough materials, offering precision and excellent performance for tasks with small edges and points.
Dimensions:

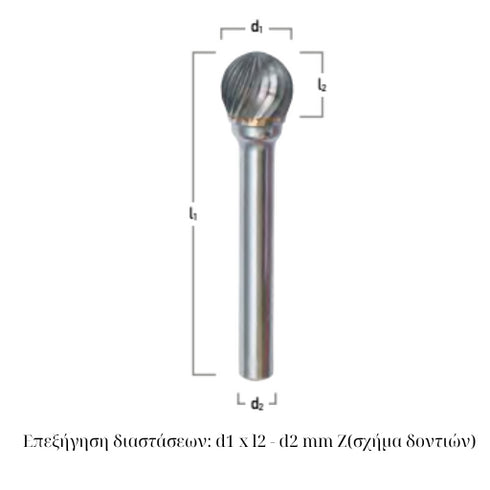

Dimensions explanation: d1 x l2 - d2 mm

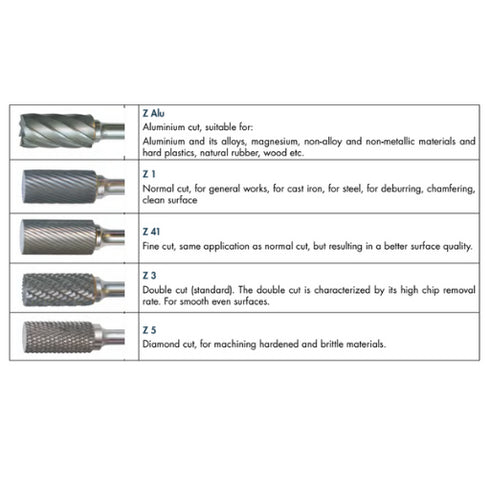

Z (tooth shape):
- Z1 - Standard tooth
- Z3 - Cross-cut tooth
- ZALU - Tooth for aluminum
For detailed information and cutting conditions, download the PDF file here.
Rotary files for high-speed machines are specialized cutting and grinding tools that attach to high-RPM tools, such as:
Straight grinders
Hand drills
Angle grinders
Dremel machines (very popular for fine details!)
These files are designed to operate at thousands of revolutions per minute (RPM), allowing for rapid material removal and precise shaping.
Materials:
High-Speed Steel (HSS): For softer metals and wood.
Carbide: For harder metals, like steel and stainless steel.
Diamond coating: For extremely hard materials, such as glass, ceramics, or hard stones.
Shapes: Cylindrical, conical, spherical, flame-shaped, discs, etc.
Teeth/Grooves: Can be coarse for quick material removal or fine for precision finishing.
Shank diameter: Typically from 3 mm to 6 mm, to fit different tool heads.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Φ5 x 4 - 3mm Z3 | €17,16 | ||
| Φ6 x 5 - 3mm Z1 | €15,63 | ||
| Φ6 x 5 - 6mm Z1 | €19,40 | ||
| Φ6 x 5 - 6mm Z3 | €19,40 | ||
| Φ6 x 5 - 6mm ZALU | €21,78 | ||
| Φ8 x 7 - 6mm Z1 | €19,40 | ||
| Φ8 x 7 - 6mm Z3 | €19,40 | ||
| Φ8 x 7 - 6mm L=90mm Z3 | €33,56 | ||
| Φ10 x 9 - 6mm Z1 | €21,03 | ||
| Φ10 x 9 - 6mm Z3 | €21,03 | ||
| Φ10 x 9 - 6mm ZALU | €31,82 | ||
| Φ12 x 11 - 6mm Z1 | €28,60 | ||
| Φ12 x 11 - 6mm Z3 | €28,60 | ||
| Φ12 x 11 - 6mm ZALU | €35,95 | ||
| Φ16 x 14 - 6mm Z1 | €34,86 | ||
| Φ16 x 14 - 6mm Z3 | €34,86 | ||
| Φ16 x 14 - 6mm ZALU | €43,71 |
