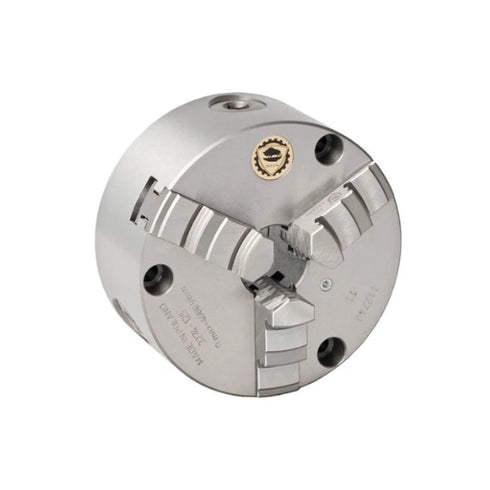

B3274 3-Jaw Scroll Lathe Chuck DIN 6350 (Plain Back) BISON
SKU: B3274-80
VENDOR: BISON
Prices without VAT 24%
BISON lathe chucks represent the premium choice for any modern machine shop, delivering superior engineering quality, maximum structural rigidity, and unmatched operational reliability. With over 70 years of manufacturing excellence, BISON is a globally recognized leader in the workholding industry, offering high-performance clamping solutions that meet the most rigorous industrial standards.
The B3274 series features 3 steel self-centering jaws (scroll mechanism) that guarantee absolute concentricity between the workpiece and the chuck, providing micro-precision tolerances under high cutting forces along with effortless operation. It is perfectly optimized for the machining of cylindrical components, ensuring high metal-removal efficiency, deformation resistance, and long-term durability.
This specialized series features a plain back configuration manufactured in strict accordance with the DIN 6350 standard, ensuring seamless alignment and solid mating with the lathe's corresponding adapter flanges. A major advantage of this specific design is its front-mounting system, where the chuck-to-flange connection is secured via 3 clamping bolts directly from the front face, drastically simplifying installation, run-out adjustment, and routine tool maintenance.
Features:
-
Series Code: B3274
-
Jaw Configuration: 3-Jaw Self-Centering Steel Scroll Chuck
-
Mounting Standard: DIN 6350 (Plain Back / Recess Mount)
-
Mounting Type: Front mount configuration utilizing 3 through-bolts from the front face
-
Material: Premium high-tensile forged steel / cast iron body for extended tool life
-
Optimized for: Concentric gripping of cylindrical stock, heavy-duty turning, and high-precision applications
-
Manufacturer: BISON (World-class European quality)

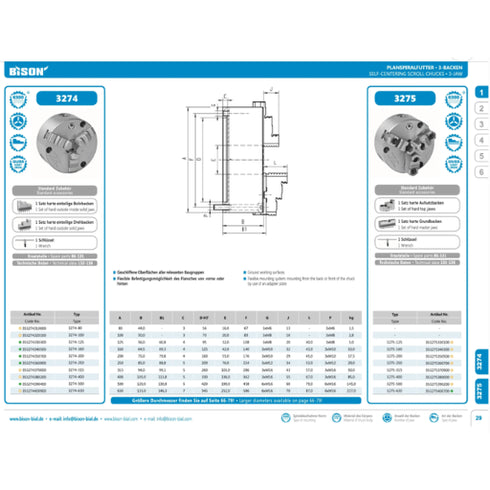

Explanation of Dimensions: A / D / Type
| Name | Price | Quantity | Action |
|---|---|---|---|
| 80mm / 56mm / Cast Iron | €684,00 | ||
| 80mm / 56mm / Steel | €964,00 | ||
| 100mm / 70mm / Cast Iron | €759,00 | ||
| 100mm / 70mm / Steel | €1.111,00 | ||
| 125mm / 95mm / Cast Iron | €841,00 | ||
| 125mm / 95mm / Steel | €1.124,00 | ||
| 160mm / 125mm / Cast Iron | €873,00 | ||
| 160mm / 125mm / Steel | €1.227,00 | ||
| 200mm / 160mm / Cast Iron | €945,00 | ||
| 200mm / 160mm / Steel | €1.457,00 | ||
| 250mm / 200mm / Cast Iron | €1.302,00 | ||
| 250mm / 200mm / Steel | €1.905,00 | ||
| 315mm / 260mm / Cast Iron | €2.036,00 | ||
| 315mm / 260mm / Steel | €2.698,00 | ||
| 400mm / 330mm / Cast Iron | €4.679,00 | ||
| 400mm / 330mm / Steel | €5.693,00 | ||
| 500mm / 420mm / Cast Iron | €8.382,00 | ||
| 500mm / 420mm / Steel | €12.224,00 | ||
| 630mm / 545mm / Cast Iron | €11.809,00 | ||
| 630mm / 545mm / Steel | €18.307,00 |
