BISON B3274 3-Jaw Self-Centering Steel Lathe Chuck DIN 6350
SKU: B3274-80
VENDOR: BISON
Prices without VAT 24%
The BISON B3274 lathe chuck is a premium solution for professional machine shops and industrial machining applications, offering exceptional accuracy, reliability, and durability. With more than 70 years of experience, BISON is recognized worldwide as a leading manufacturer of workholding systems and machine tool accessories.

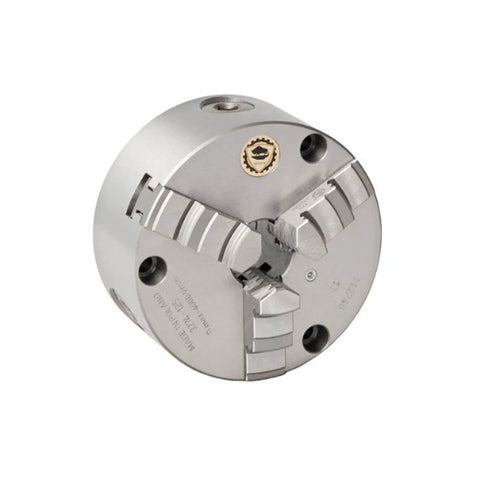

The chuck is equipped with 3 self-centering steel jaws, ensuring fast and precise workpiece clamping while maintaining excellent concentricity with the spindle axis. Its self-centering design makes it ideal for machining cylindrical and symmetrical workpieces with high repeatability.
The B3274 series features a DIN 6350 recess mount, ensuring secure installation and compatibility with suitable mounting plates. The chuck is secured to the backing plate using 3 front-mounted clamping screws, providing a rigid and reliable connection.
Suitable for CNC and conventional lathes, delivering excellent performance in both general-purpose and demanding machining operations.
Features:
- Self-centering lathe chuck
- Series: B3274
- Manufacturer: BISON
- 3 self-centering steel jaws
- High concentricity accuracy
- DIN 6350 recess mount
- Front mounting with 3 clamping screws
- Suitable for cylindrical and symmetrical workpieces
- Ideal for CNC and conventional lathes
- Industrial-grade construction

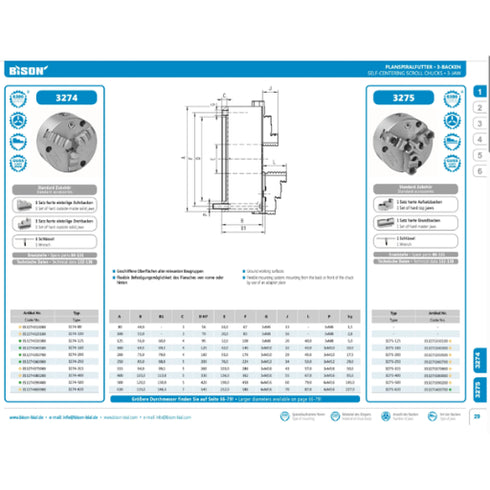

Explanation of Dimensions: A / D / Type
| Name | Price | Quantity | Action |
|---|---|---|---|
| 80mm / 56mm / Cast Iron | €684,00 | ||
| 80mm / 56mm / Steel | €964,00 | ||
| 100mm / 70mm / Cast Iron | €759,00 | ||
| 100mm / 70mm / Steel | €1.111,00 | ||
| 125mm / 95mm / Cast Iron | €841,00 | ||
| 125mm / 95mm / Steel | €1.124,00 | ||
| 160mm / 125mm / Cast Iron | €873,00 | ||
| 160mm / 125mm / Steel | €1.227,00 | ||
| 200mm / 160mm / Cast Iron | €945,00 | ||
| 200mm / 160mm / Steel | €1.457,00 | ||
| 250mm / 200mm / Cast Iron | €1.302,00 | ||
| 250mm / 200mm / Steel | €1.905,00 | ||
| 315mm / 260mm / Cast Iron | €2.036,00 | ||
| 315mm / 260mm / Steel | €2.698,00 | ||
| 400mm / 330mm / Cast Iron | €4.679,00 | ||
| 400mm / 330mm / Steel | €5.693,00 | ||
| 500mm / 420mm / Cast Iron | €8.382,00 | ||
| 500mm / 420mm / Steel | €12.224,00 | ||
| 630mm / 545mm / Cast Iron | €11.809,00 | ||
| 630mm / 545mm / Steel | €18.307,00 |
