Carbide drills 12xD with coolant, 51893
SKU:
VENDOR: STOCK
Prices without VAT 24%
€161,57
DESCRIPTION

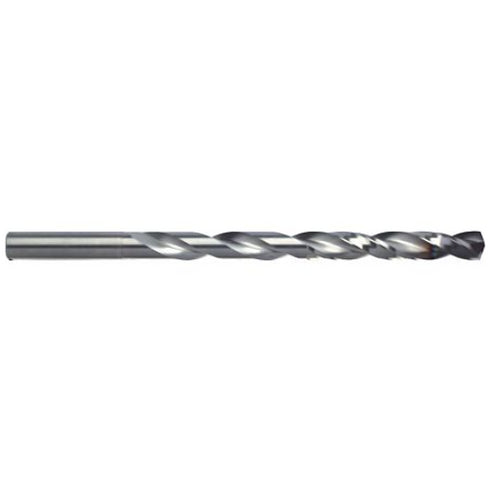

The carbide drill 12xD 51893 is a high-performance drilling tool with coolant supply, designed for deep precision machining. It features tip coating, optimized cutting geometry, and double margin, ensuring enhanced stability, high wear resistance, and excellent hole quality.
Product Features:
• Type: Carbide drill 12xD with coolant.
• Shank: Cylindrical.
• Drilling Depth: Up to 12xD.
• Coating: Tip coating for increased performance and longevity.

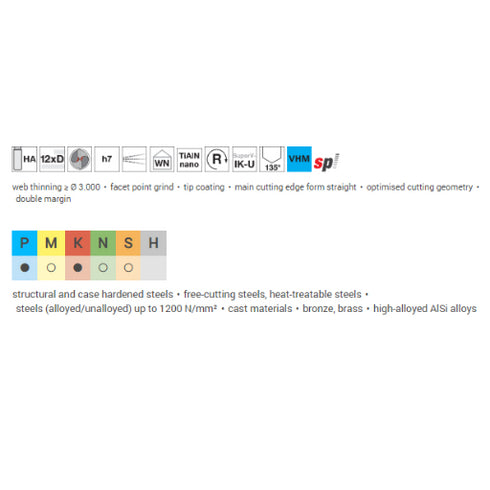

• Properties:
- Web thinning ≥ Ø 3.000 for reduced cutting resistance.
- Facet point grind for precise drilling starts.
- Straight main cutting edge for cleaner holes.
- Double margin for enhanced stability and accuracy.
- Optimized cutting geometry for smooth chip evacuation.
• Applications: - Machining structural and case-hardened steels, free-cutting and heat-treatable steels.
- Ideal for steels (alloyed/unalloyed) up to 1200 N/mm².
- Suitable for cast materials, bronze, brass, and high-alloyed AlSi alloys.

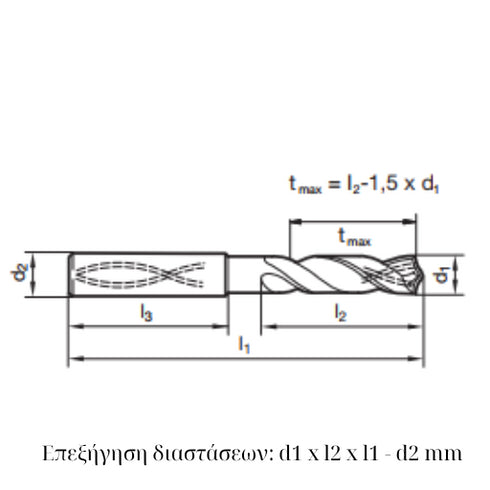

Dimensional explanation: d1 x l2 x l1 - d2 mm
For detailed information and cutting conditions, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Φ3 x 50 x 90 - 6mm | €161,57 | ||
| Φ3.3 x 50 x 90 - 6mm | €161,57 | ||
| Φ3.5 x 50 x 90 - 6mm | €161,57 | ||
| Φ4 x 64 x 102 - 6mm | €161,57 | ||
| Φ4.2 x 64 x 102 - 6mm | €161,57 | ||
| Φ4.5 x 64 x 102 - 6mm | €161,57 | ||
| Φ5 x 78 x 116 - 6mm | €161,57 | ||
| Φ5.5 x 78 x 116 - 6mm | €161,57 | ||
| Φ6 x 78 x 116 - 6mm | €161,57 | ||
| Φ6.5 x 108 x 146 - 8mm | €189,12 | ||
| Φ6.8 x 108 x 146 - 8mm | €189,12 | ||
| Φ7 x 108 x 146 - 8mm | €189,12 | ||
| Φ7.5 x 108 x 146 - 8mm | €189,12 | ||
| Φ8 x 108 x 146 - 8mm | €189,12 | ||
| Φ8.5 x 120 x 162 - 10mm | €238,50 | ||
| Φ9 x 120 x 162 - 10mm | €238,50 | ||
| Φ9.5 x 120 x 162 - 10mm | €238,50 | ||
| Φ10 x 120 x 162 - 10mm | €238,50 | ||
| Φ10.2 x 156 x 204 - 12mm | €316,43 | ||
| Φ10.5 x 156 x 204 - 12mm | €316,43 | ||
| Φ11 x 156 x 204 - 12mm | €316,43 | ||
| Φ11.5 x 156 x 204 - 12mm | €316,43 | ||
| Φ12 x 156 x 204 - 12mm | €316,43 | ||
| Φ12.5 x 182 x 230 - 14mm | €392,10 | ||
| Φ13 x 182 x 230 - 14mm | €392,10 | ||
| Φ13.5 x 182 x 230 - 14mm | €392,10 | ||
| Φ14 x 182 x 230 - 14mm | €392,10 | ||
| Φ14.5 x 208 x 260 - 16mm | €555,51 | ||
| Φ15 x 208 x 260 - 16mm | €555,51 | ||
| Φ15.5 x 208 x 260 - 16mm | €555,51 | ||
| Φ16 x 208 x 260 - 16mm | €555,51 | ||
| Φ16.5 x 234 x 285 - 18mm | €618,71 | ||
| Φ17 x 234 x 285 - 18mm | €618,71 | ||
| Φ17.5 x 234 x 285 - 18mm | €618,71 | ||
| Φ18 x 234 x 285 - 18mm | €618,71 | ||
| Φ18.5 x 258 x 310 - 20mm | €883,16 | ||
| Φ19 x 258 x 310 - 20mm | €883,16 | ||
| Φ19.5 x 258 x 310 - 20mm | €883,16 | ||
| Φ20 x 258 x 310 - 20mm | €883,16 |
